Creating the Dashboard Filter and Connecting your Visualization

    The dashboard displayed in the first page of this tutorial is connected to a date range dashboard filter. These kinds of filters enable a time-based scenario analysis. When connected to all visualizations, they allow for users to dynamically filter their whole dashboard.

    In order create the filter, you will need to:

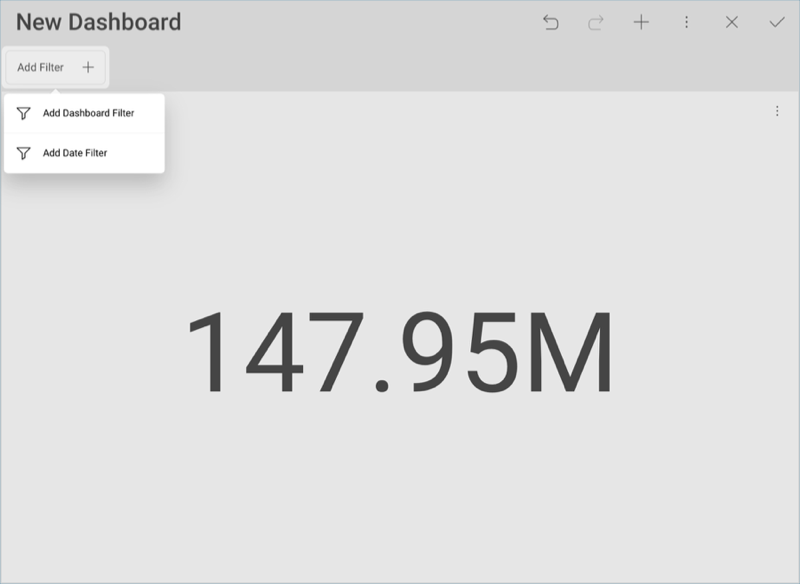

    1. Select the Add Filter button under your dashboard's name, and then Add Date Filter

      AddDateFilterDashboard\_All

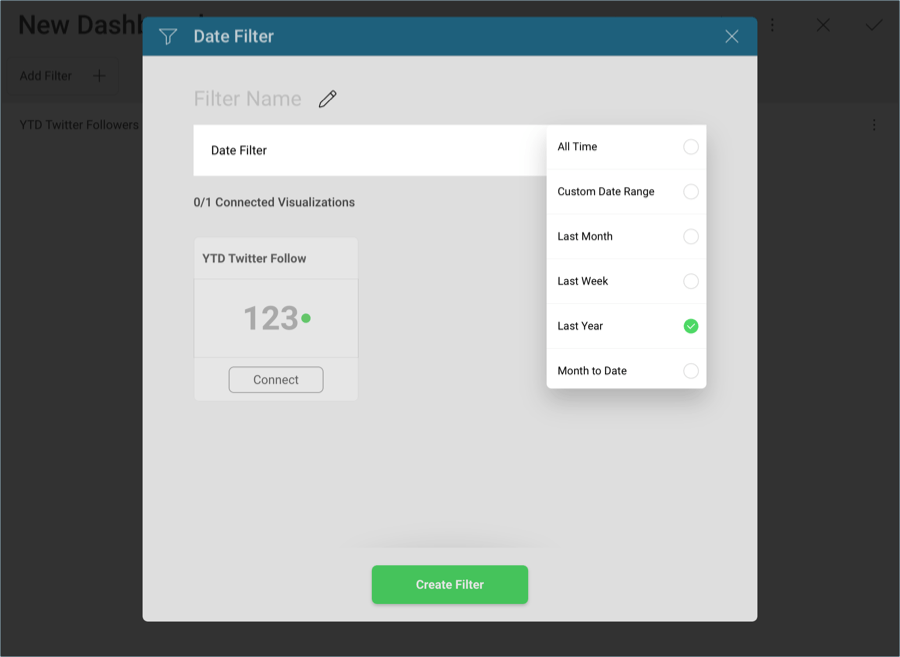

    2. Under Date Filter, select Last Year.

      AddLastYearFilter\_All

    Once the date filter has been created, you will need to connect it to your existing visualization. In order to do so:

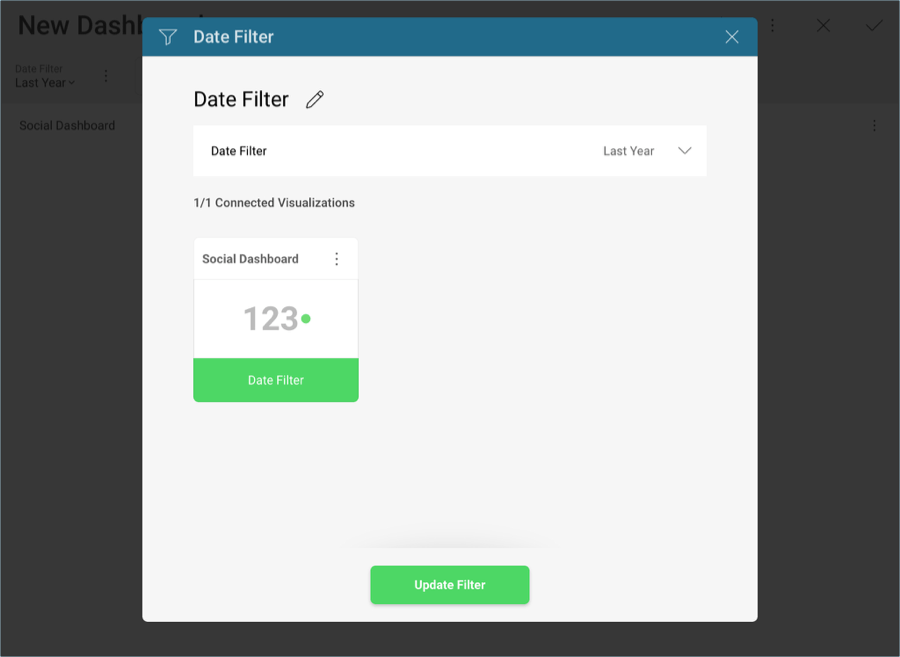

    1. Select the Connect button in the YTD Twitter Followers visualization. Analytics will attempt to connect the dashboard filter to a field in your visualization.

      SocialDateFilterConnected\_All

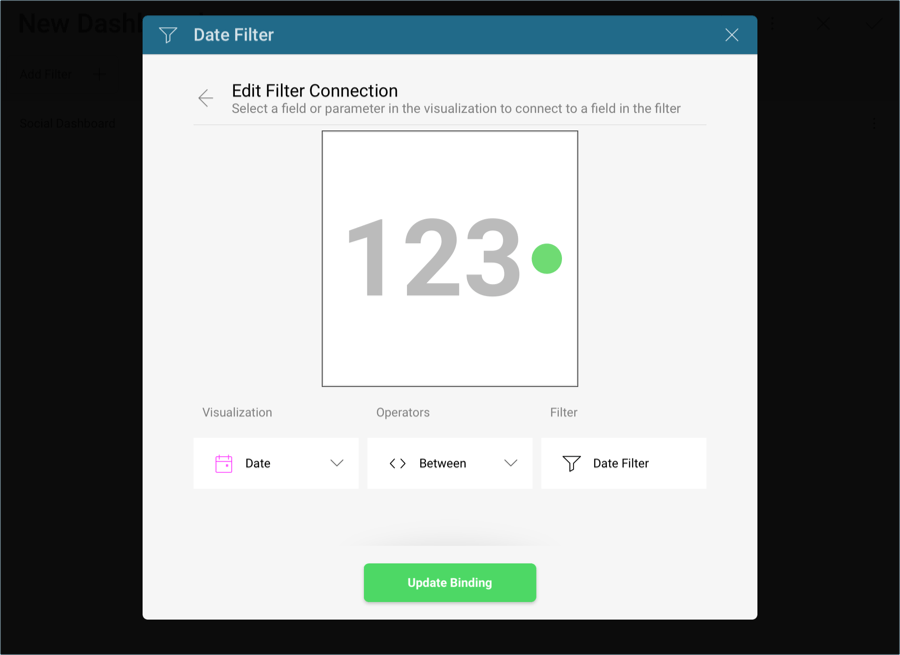

      If you select Date Filter, you will be able to edit the connection if necessary.

      EditFilterConnection\_All

    2. Select Update Binding.

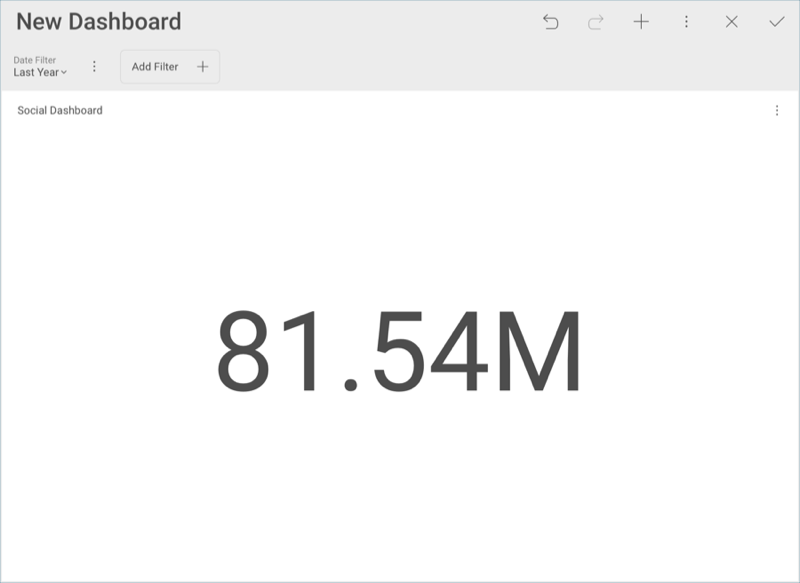

    Your visualization will the look like the following one:

    SocialDateFilterConnectedFirstVisualization\_All
